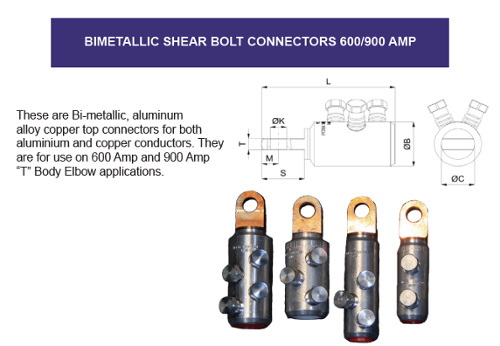

These are Bi-metallic, aluminum alloy copper top connectors for both aluminum and copper conductors. They are for use on 600 Amp and 900 Amp “T” Body Elbow applications.

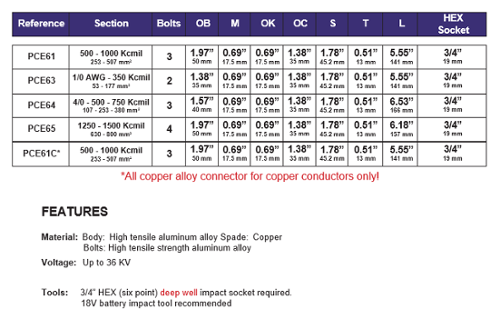

PCE-61 FEATURES:
Material: Body: High tensile aluminum alloy Spade: Copper
Bolts: High tensile strength aluminum alloy
Voltage: Up to 36 KV
Tools: 3/4” HEX (six point) deep well impact socket required.
18V battery impact tool recommended
AWG/Kcmil
500 - 1000 Kcmil
Bolts
3
Overall Body Length
1.97" (50 MM)
Length of Pad
0.69" (17.5 MM)
Diameter of Pinhole
0.69" (17.5 MM)
Overall Width of Pad
1.38" (35 MM)
Sleeve Length
1.78" (45.2 MM)
Thickness
0.50" (12.8 MM)
Length
5.56" (141.0 MM)
