Home Non-Tension PCS CONNECTOR MECHANICAL SHEAR BOLT LUG #3 AWG - 250 KCMIL (100 PER BX)

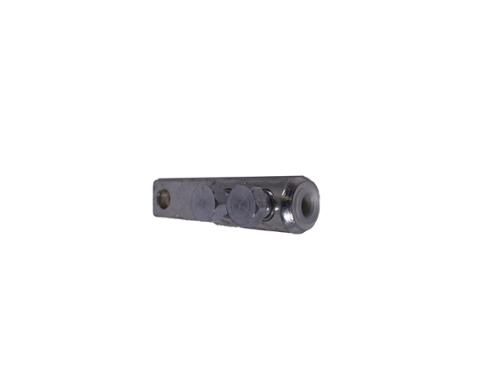

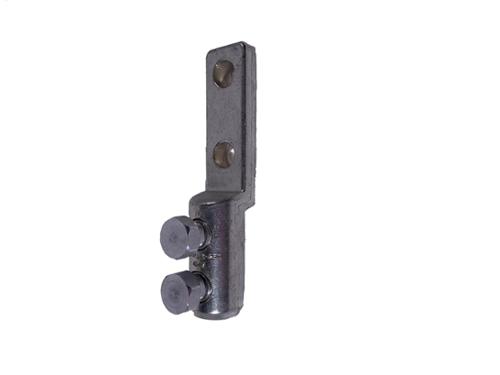

PCS CONNECTOR MECHANICAL SHEAR BOLT LUG #3 AWG - 250 KCMIL (100 PER BX)

Calculating price...
Ref: PCL-50
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCL-50 Features

These are one piece tin plated aluminum alloy cable lugs designed for both aluminum and copper conductors from #6 AWG up to 1000 Kcmil. Approved for low and medium voltage applications on multiple NEMA spacing connections.

Features:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 kV
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCL-50 Specs

AWG/Kcmil

#3 AWG - 250 Kcmil

Bolts

2

Overall Body Length

1.18" (30 MM)

Sleeve Length

3.15" (80 MM)

Clamping Length

0.43" (11 MM)

Thickness

1.18" (30 MM)

Length

5.71" (145 MM)

Outside Diameter

0.56" (14.3" MM)
