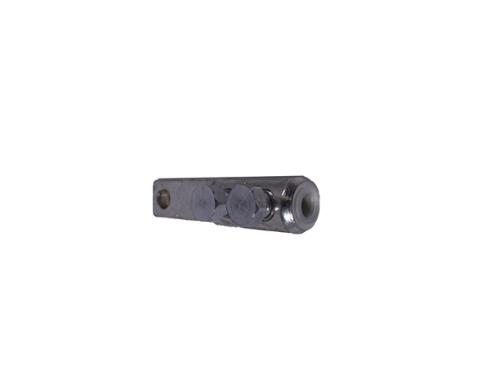

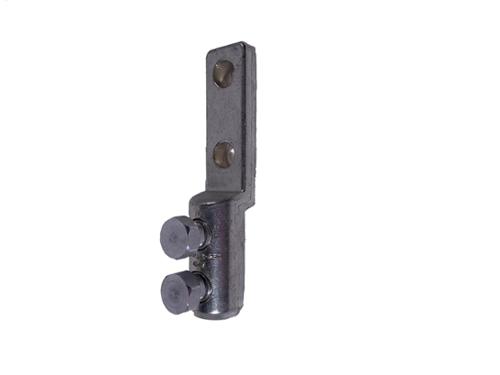

PCS CONNECTOR MECHANICAL SHEAR BOLT LUG 4/0 AWG - 500 KCMIL (75 PER BX)

Calculating price...
Ref: PCL-51
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCL-51 Features

These are one piece tin plated aluminum alloy cable lugs designed for both aluminum and copper conductors from #6 AWG up to 1000 Kcmil. Approved for low and medium voltage applications on multiple NEMA spacing connections.

Features:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 kV
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCL-51 Specs

AWG/Kcmil

4/0 AWG - 500 Kcmil

Bolts

2

Overall Body Diameter

1.38" (35 MM)

Sleeve Length

3.15" (80 MM)

Clamping Length

0.43" (11 MM)

Thickness

1.38" (35 MM)

Length

6.10" (155 MM)

Outside Diameter

0.56" (14.3 MM)
