Home Non-Tension PCS CONNECTOR MECHANICAL SHEAR BOLT LUG 500 - 1000 KCMIL (38 PER BX)

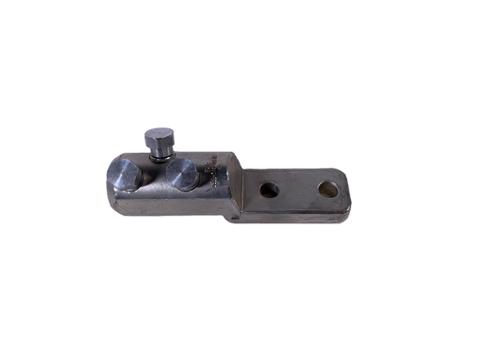

PCS CONNECTOR MECHANICAL SHEAR BOLT LUG 500 - 1000 KCMIL (38 PER BX)

Calculating price...
Ref: PCL-52
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCL-52 Features

These are one piece tin plated aluminum alloy cable lugs designed for both aluminum and copper conductors from #6 AWG up to 1000 Kcmil. Approved for low and medium voltage applications on multiple NEMA spacing connections.

Features:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 kV
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCL-52 Specs

AWG/Kcmil

500 - 1000 Kcmil

Bolts

3

Overall Body Length

1.85" (47 MM)

Sleeve Length

3.20" (81.44 MM)

Clamping Length

0.63" (16 MM)

Thickness

1.69" (43 MM)

Length

6.87" (174.5 MM)

Outside Diameter

0.56" (14.3 MM)
