Home Non-Tension PCS CONNECTOR STRAIGHT STEP MECHANICAL SHEAR BOLT #2 AWG - 250 KCMIL (70 PER BX)

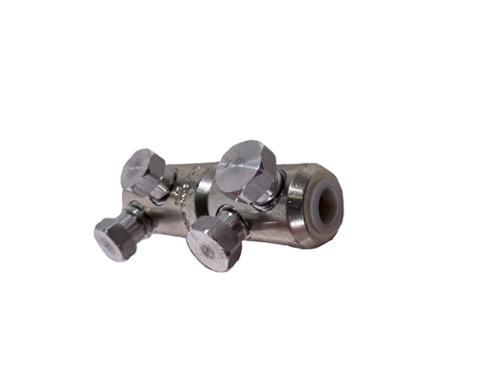

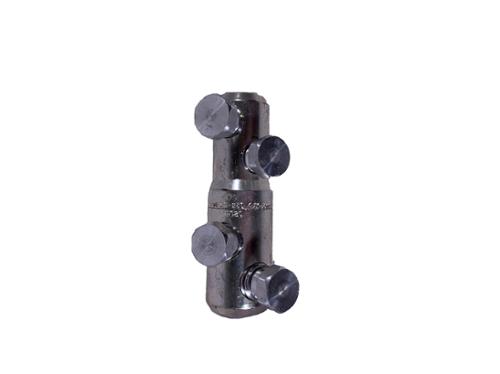

PCS CONNECTOR STRAIGHT STEP MECHANICAL SHEAR BOLT #2 AWG - 250 KCMIL (70 PER BX)

Calculating price...
Ref: PCSS16
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCSS16 Features

These are multi-range tin plated aluminum alloy step connectors with a solid center barrier designed for both aluminum and copper conductors. These connectors are for use in low and medium voltage applications.

Features:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 kV
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCSS16 Specs

AWG/Kcmil (Side 1)

#2 AWG - 250 Kcmil

AWG/Kcmil (Side 2)

4/0 AWG - 500 Kcmil

Bolts (Side 1)

2

Bolts (Side 2)

2

Outside Diameter

1.38" (35 MM)

Outside Diameter (1)

1.18" (30 MM)

Length

4.37" (111 MM)
