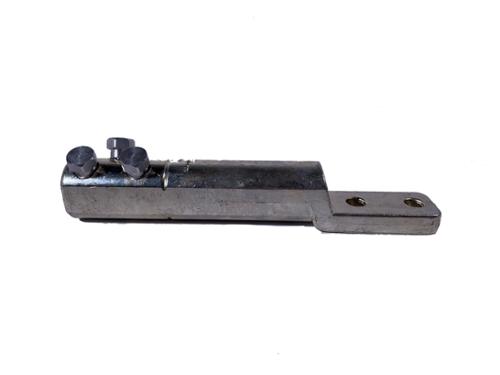

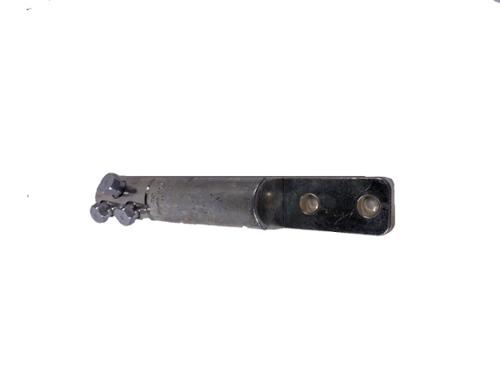

PCS CONNECTOR REPAIR MECHANICAL SHEAR BOLT LUGS 500 - 1000 KCMIL (20 PER BX)

Calculating price...
Ref: PCLR52
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCLR52 Features

These are tin plated aluminum alloy cable lugs for repair or replacement of existing connections from #6 AWG up to 1000 Kcmil. Suitable for use on stranded Aluminum or Copper conductors. Approved for low and medium voltage applications on multiple NEMA spacing connections.

Features:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 kV
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCLR52 Specs

AWG/Kcmil

500 - 1000 Kcmil

Bolts

3

Overall Body Length

1.85" (47 MM)

Sleeve Length

3.20" (81.4 MM)

Clamping Length

0.63" (16 MM)

Thickness

1.69" (43 MM)

Length

11.02" (280 MM)

Outside Diameter

0.56" (14.3 MM)
