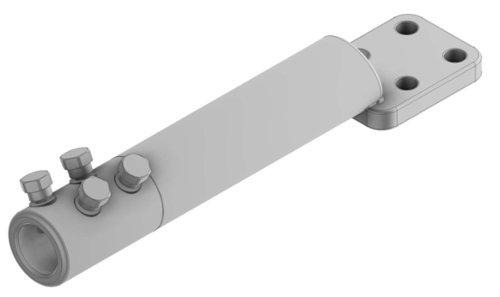

PCS MECHANICAL/REPAIR MECHANICAL SHEAR BOLT REPAIR LUG (8 PER BX)

Calculating price...
Ref: PCLRT4
Mfr: PowerConnector Specialties, Inc
QUANTITY

About this item

PCLRT4 Features

These are a one-piece tinned aluminum alloy cable lugs designed for both aluminum and copper conductors of #2 AWG up to 1500 Kcmil. Approved for low and medium voltage applications on multiple NEMA spacing connections.

*Repair Lug

FEATURES:

  • Material: Body: High tensile tin-plated aluminum alloy
  • Bolts: High tensile strength aluminum alloy
  • Voltage: Up to 36 Kv
  • Tools: 3/4” HEX (six point) deep well impact socket required. 18V battery impact tool recommended.



PCLRT4 Specs

AWG/Kcmil

1000 - 1500 Kcmil

Bolts

4

Overall Body Length

2.17" (55 MM)

Sleeve Length

3.25" (82.5 MM)

Clamping Length

0.63" (16 MM)

Thickness

2.99" (76 MM)

Length

15" (381 MM)

Outside Diameter

0.56" (14.3 MM)

Palm Holes

4
